    E4 11/2" Diaphragm Pump

    페이지 정보

    profile_image
    작성자 PNSENG
    댓글 댓글 0건   조회Hit 349회   작성일Date 21-03-21 21:01

    본문

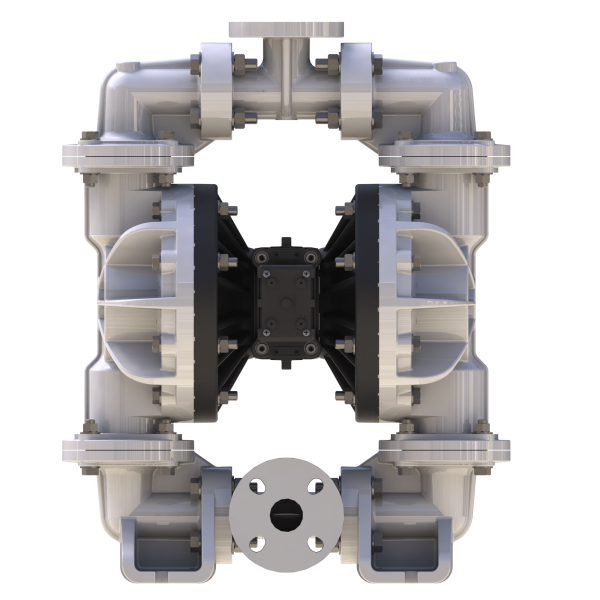

    1 ½" (38MM) BOLTED PLASTIC AODD PUMP FEATURES

    Versamatic’s 1 ½" (38mm) bolted plastic air-operated double-diaphragm (AODD) pump offers installation flexibility with adjustable porting options (horizontal and vertical). The 1 ½" AODD pump:

    • Maximum flows up to 100 gpm (378 lpm)
    • Chemically resistant all plastic design (Fluid Side / Air Side)
    • Class-leading solids handling up to 0.47 inches (12 mm)
    • Industry-leading displacement per stroke of 0.43 Gal. /1.63 L
    • Delivers consistent on/off reliability
    • Provides excellent chemical resistance
    • Conductive Polypropylene ATEX compliant models available
    • Safe leak-free bolted design

    1 1/2" bolted plastic AODD pumps consist of polypropylene and polyvinylidene fluoride (PVDF). Polypropylene is a thermoplastic polymer that resists strong acids and alkali. PVDF is a durable fluoroplastic with excellent chemical resistance, high tensile strength, and impact resistance. PVDF is best suited for UV applications.

    With excellent chemical resistance, the 1 1/2" all plastic pump is ideal for aggressive chemical transfer, waste treatment (filter press) applications, and metal finishing. In addition, this pump is engineered to supply high flow rates in a portable size.


    SPECIFICATIONS

    Flow Rate0-100 gpm (378 lpm)
    Port Size
    Suction
    Discharge

    1 ½" ANSI/DIN
    1 ½" ANSI/DIN
    Air Inlet¾" NPT
    Air Exhaust1" NPT
    Suction Lift
    Dry
    Wet

    19' (5.8 m)
    29' (8.8 m)
    Max Solid Size (Diameter)0.47" (12 mm)
    Max Noise Level89 dB(A)

    Shipping Weight
    Polypropylene
    PVDF
    Conductive Polypropylene


    82 lbs (37 kg)
    112 lbs (51 kg)
    85 lbs (38 kg)



    PERFORMANCE CHART

    E40 non-met.CURVE
