    Wilden 펌프

    P220 1" Diaphragm Pump

    페이지 정보

    profile_image
    작성자 PNSENG
    댓글 댓글 0건   조회Hit 182,031회   작성일Date 21-03-29 13:57

    본문

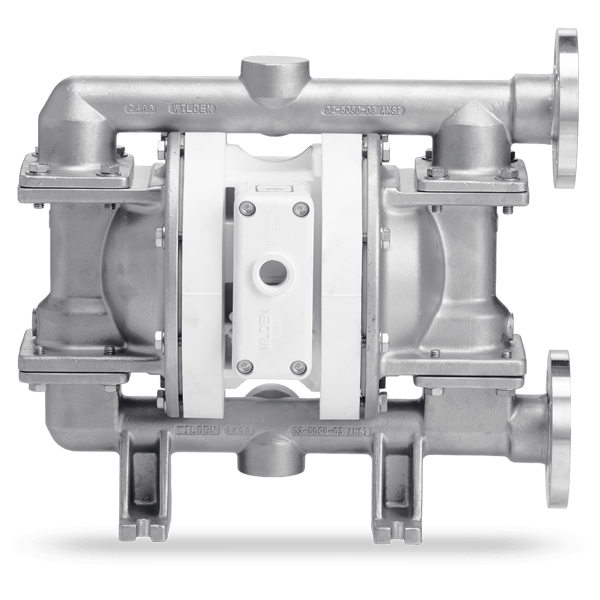

    Wilden Pro-Flo® Series Bolted Threaded Stainless Steel Pump 25 mm (1 inch) - P220/P230Wilden Pro-Flo® Series Bolted Threaded Ductile Iron Pump 25 mm (1 inch) - P220/P230Wilden Pro-Flo® Series Bolted Flanged Stainless Steel Pump 25 mm (1 inch) - P220/P230

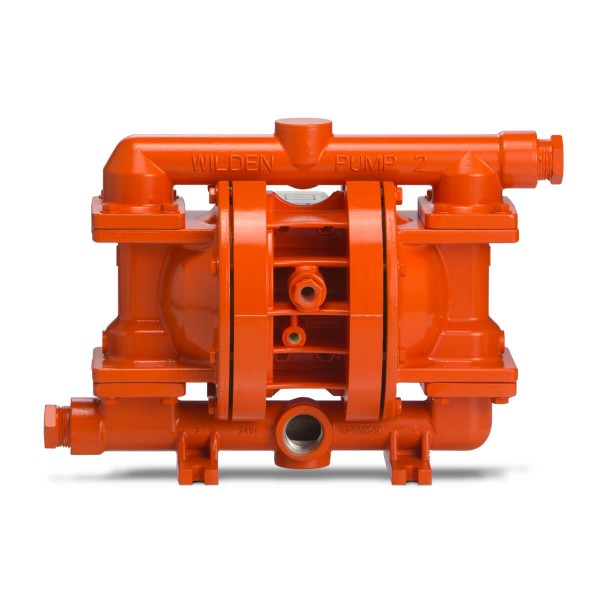

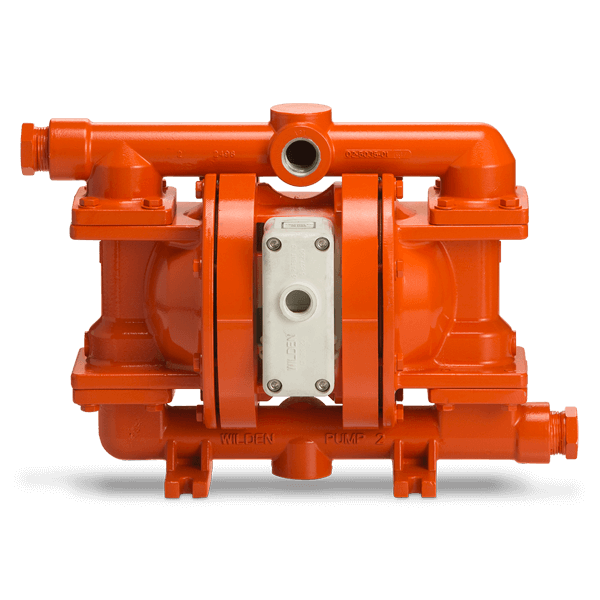

    Wilden Pro-Flo® Series Bolted Aluminum Pump 25 mm (1 inch) - P220/P230Wilden Pro-Flo® Series Bolted Stainless Steel Pump 25 mm (1 inch) - P220/P230



    25 mm (1") Pro-Flo® Series Bolted Metal PumpP220/P230

    AIR INLET
    • 1/4" FNPT
    LIQUID INLET
    • 25 mm (1")
    LIQUID DISCHARGE
    • 25 mm (1")
    CONNECTION TYPE
    • NPT/BSPT (Threaded)
    • DIN/ANSI (Flanged)
    MAX SUCTION LIFT CAPABILITY
    • Rubber – 5.4 m (17.6') Dry, 9.3 (30.6') Wet
    • TPE – 4.1 m (13.6') Dry, 9.3 (30.6') Wet
    • Full-Stroke PTFE – 5.5 m (18.2') Dry, 9.0 m (29.5') Wet
    • Reduced-Stroke PTFE – 3.5 m (11.4') Dry, 9.3 m (30.6') Wet
    MAX FLOW RATE
    • Rubber – 212 lpm (56 gpm)
    • TPE – 212 lpm (56 gpm)
    • Full-Stroke PTFE – 185 lpm (49 gpm)
    • Reduced-Stroke PTFE – 168 lpm (44 gpm)
    MAX PRESSURE
    • 8.6 bar (125 psi)
    MAX DIAMETER SOLIDS
    • 6.4 mm (1/4'')
    DISPLACEMENT PER STROKE *
    • Rubber – 0.30 L (0.08 gal)
    • TPE – 0.34 L (0.09 gal)
    • Full-Stroke PTFE – 0.3 L (0.08 gal)
    • Reduced-Stroke PTFE – 0.23 L (0.06 gal)
    * 1 cycle = 2 strokes

    Features and Benefits

    The Wilden® bolted metal pump, also known as FIT, sets the new standard for pump performance. Featuring an enhanced flow path design, Wilden's bolted-construction pumps offer improved flow rates (up to 35% over competitive models) as well as improved diaphragm life. Wilden's bolted pumps are also designed for superior containment and have the exact bolt down footprint and inlet/discharge connections as Wilden clamped pumps for easy replacement.

    • NPT or BSPT threaded inlet/discharge liquid connections (P220)
    • DIN or ANSI flanged inlet/discharge liquid connections (P230) that don't require welding or nipple attachment
    • Widest array of chemical compatibility
    • Portable and submersible
    • Large-solids passage
    • High suction lift
    • Ease of operation and maintenance
    • Flexible internal adjustment on manifolds
    • Increased on/off reliability
    • Longest Mean Time Between Repair (MTBR)



    Performance and Specifications

    Dimensions

    Dim-P220-P230-25mm1in-BMP

    Note: Dimensions vary by material and connection. For additional information, please refer to the P220/P230 Metal Manual.

    Flow Curve – TPE-Fitted

    Flo-P220-P230-25mm1in-BMP

    Note: Additional performance curves can be found in the P220/P230 Metal Manual.

    AIR INLET
    • 1/4" FNPT
    LIQUID INLET
    • 25 mm (1")
    LIQUID DISCHARGE
    • 25 mm (1")
    CONNECTION TYPE
    • NPT/BSPT (Threaded)
    • DIN/ANSI (Flanged)
    MAX FLOW RATE
    • Rubber – 212 lpm (56 gpm)
    • TPE – 212 lpm (56 gpm)
    • Full-Stroke PTFE – 185 lpm (49 gpm)
    • Reduced-Stroke PTFE – 168 lpm (44 gpm)
    MAX PRESSURE
    • 8.6 bar (125 psi)
    MAX DIAMETER SOLIDS
    • 6.4 mm (1/4'')
    MAX SUCTION LIFT CAPABILITY
    • Rubber – 5.4 m (17.6') Dry, 9.3 (30.6') Wet
    • TPE – 4.1 m (13.6') Dry, 9.3 (30.6') Wet
    • Full-Stroke PTFE – 5.5 m (18.2') Dry, 9.0 m (29.5') Wet
    • Reduced-Stroke PTFE – 3.5 m (11.4') Dry, 9.3 m (30.6') Wet
    DISPLACEMENT PER STROKE *
    • Rubber – 0.30 L (0.08 gal)
    • TPE – 0.34 L (0.09 gal)
    • Full-Stroke PTFE – 0.3 L (0.08 gal)
    • Reduced-Stroke PTFE – 0.23 L (0.06 gal)
    * 1 cycle = 2 strokes


    Wetted Housings

    MATERIALSHIP WEIGHT
    Aluminum11 kg (24 lb)
    Stainless Steel23 kg (51 lb)
    Ductile Iron21 kg (47 lb)

    Non-Wetted Housings

    DESCRIPTIONMATERIAL
    Center SectionPolypropylene, Acetal, Conductive Polypropylene
    Air ValvePolypropylene, Acetal, Conductive Polypropylene


    Elastomer Options

    MATERIALTEMPERATURE LIMITS
    Buna-N-12°C to 82°C (10°F to 180°F)
    EPDM-51°C to 138°C (-60°F to 280°F)
    FKM-40°C to 177°C (-40°F to 350°F)
    Neoprene-18°C to 93°C (0°F to 200°F)
    PTFE*4°C to 104°C (40°F to 220°F)
    Polyurethane-12°C to 66°C (10°F to 150°F)
    Saniflex™-29°C to 104°C (-20°F to 220°F)
    Wil-Flex™-40°C to 107°C (-40°F to 225°F)

    * 4°C to 149°C (40°F to 300°F) - 13 mm (1/2") and 25 mm (1") models only
